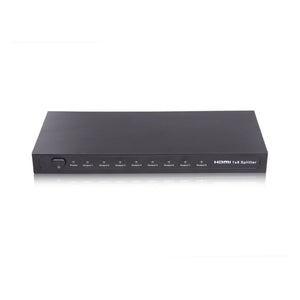

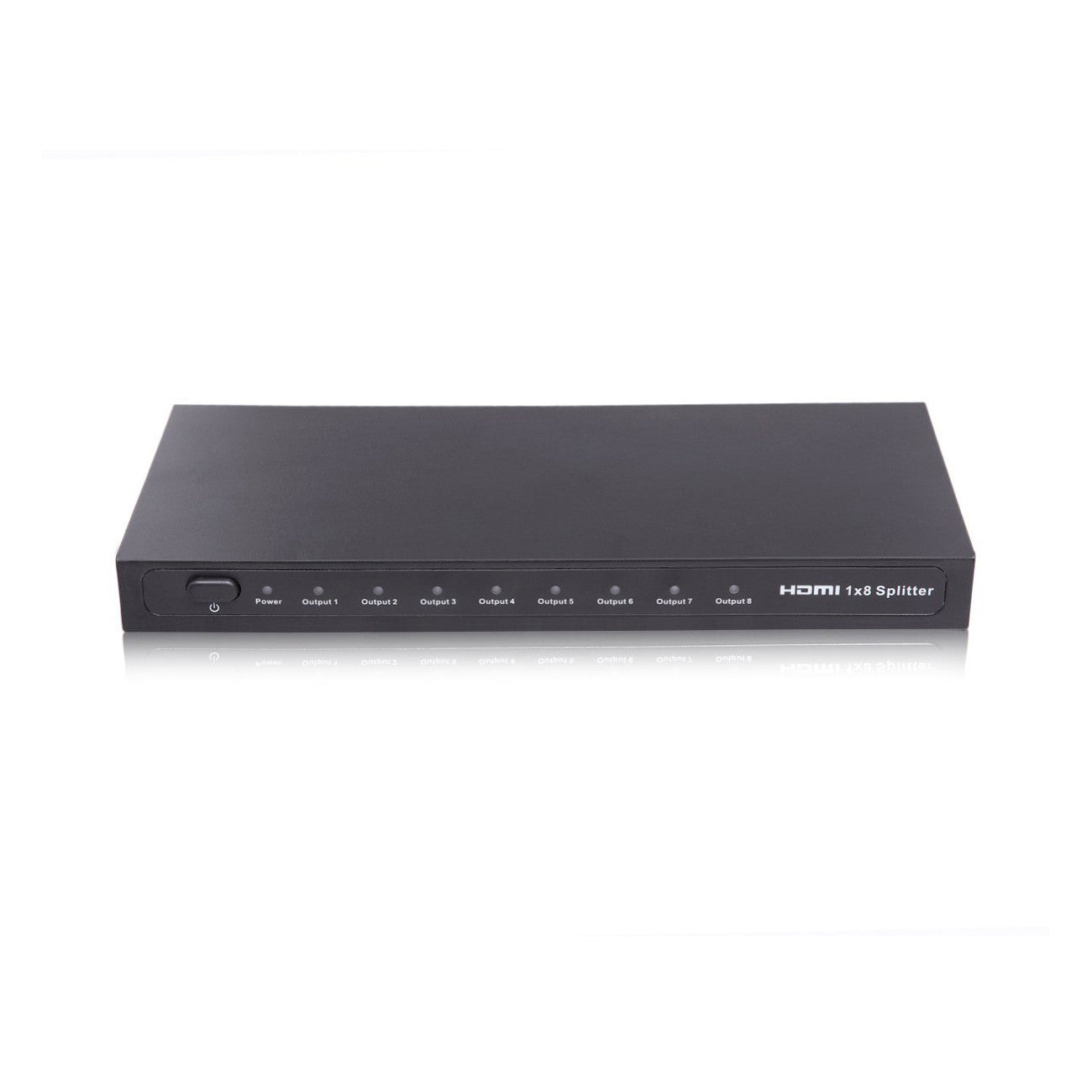

HDMI Splitter 1x8
In Stock
In Stock
Leaves warehouse in less than 24hrs
Product Description
- Watch your video content on eight displays at the same time using this 1x8 HDMI Splitter
- This splitter features an internal amplifier, which boosts the HDMI signal and allows the transmission of High Speed HDMI signals (1080p) up to 49 feet (15 meters) using ordinary High Speed HDMI cables. The one HDMI input and eight HDMI output ports are gold-plated to ensure smooth, corrosion-free connections. The splitter is powered by an included 5 VDC, 3A AC adapter.
- The splitter supports High Speed HDMI signals, which means that it supports the following HDMI features:
- * 1080p Resolution - It supports the full 1080p@60Hz HDMI resolution.
- * 3D Video - It supports all standard HDMI 3D modes.
- * Deep Color - It supports deep color up to 12-bits per channel, 36-bits total.
- * High Definition Audio - It supports high-definition multi-channel audio signals, including Dolby TrueHD and DTS-HD Master Audio
Specifications
- Transmitter:
- Input: 1 x HDMI
- Output: 8x CAT5/5e/6
- Receivers:
- Input: 1 per CAT5/5e/6
- Output: 1 x HDMI
- Video Amplifier Bandwidth: 1.65Gbps per channel
- Vertical Frequency Range: 50/60Hz
- Resolutions (HDTV): 480i,576i,480p,576p,720p,1080i,1080p
- Computer Resolution: WUXGA (1920x1200)
- Power Supply for Splitter Amplifier: 5V DC@3A, 15W
- Power Supply for Receiver: 5V DC@2A, 5W
- Operating Temperature: 32°F to +158°F (0°C to +70°C)
- Regulatory Approvals: FCC, CE, UL
- Dimensions for HDMI 4 Port Splitter Amplifier: 17 x 8 x 1.7 Inches (441x202x45mm)
- Dimensions for receiver: 3.9 x 2.5 x 1 Inches (99x64x25mm)
- Total Weight: 5lbs. (2218g)
